نظرة عامة
المميزات

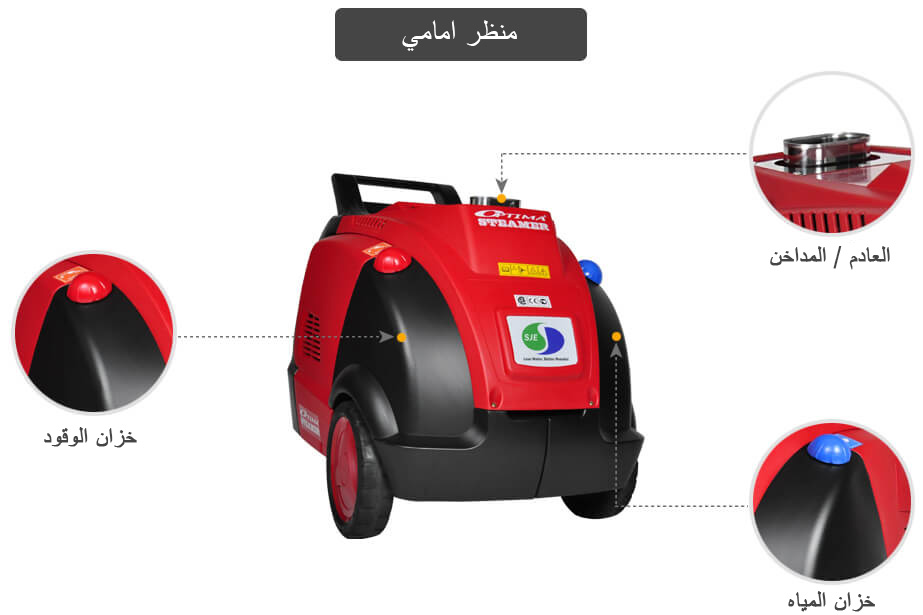

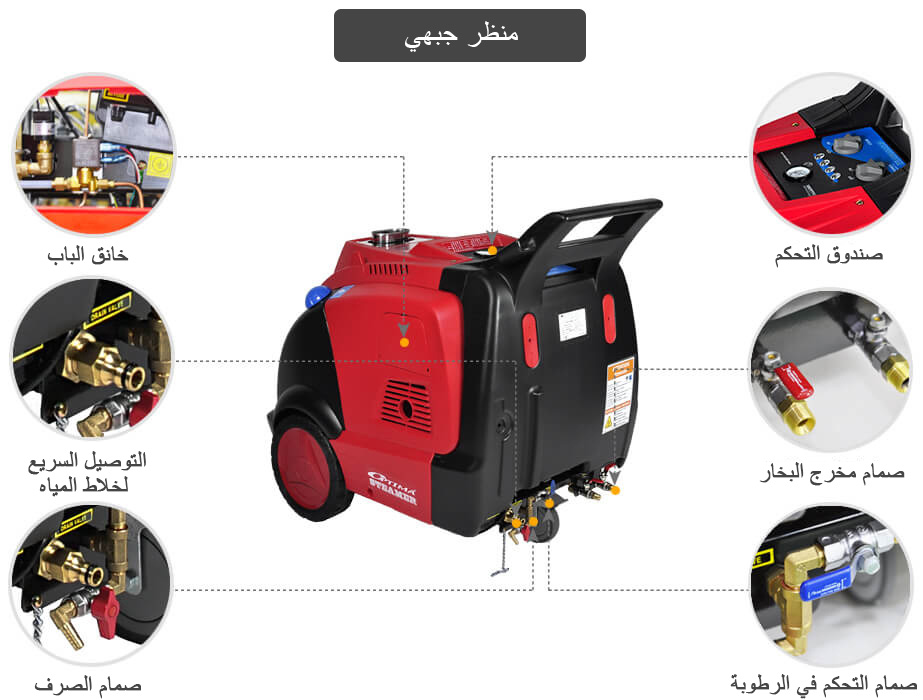

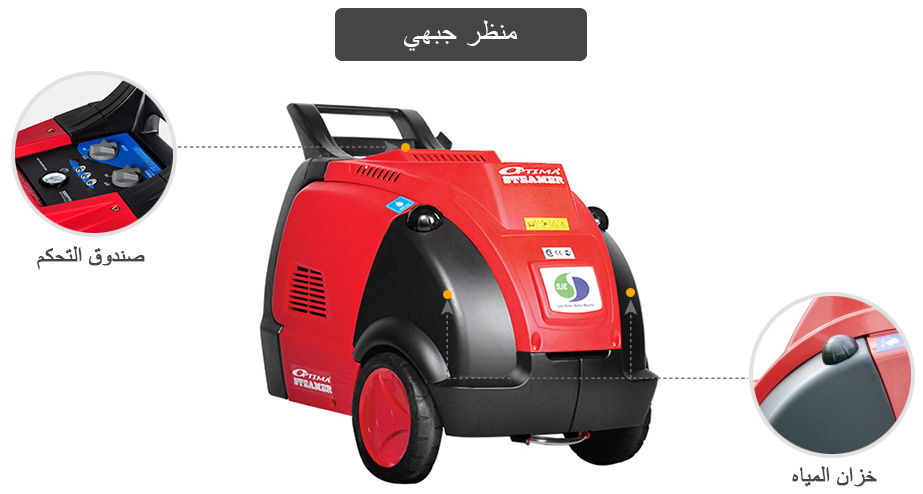

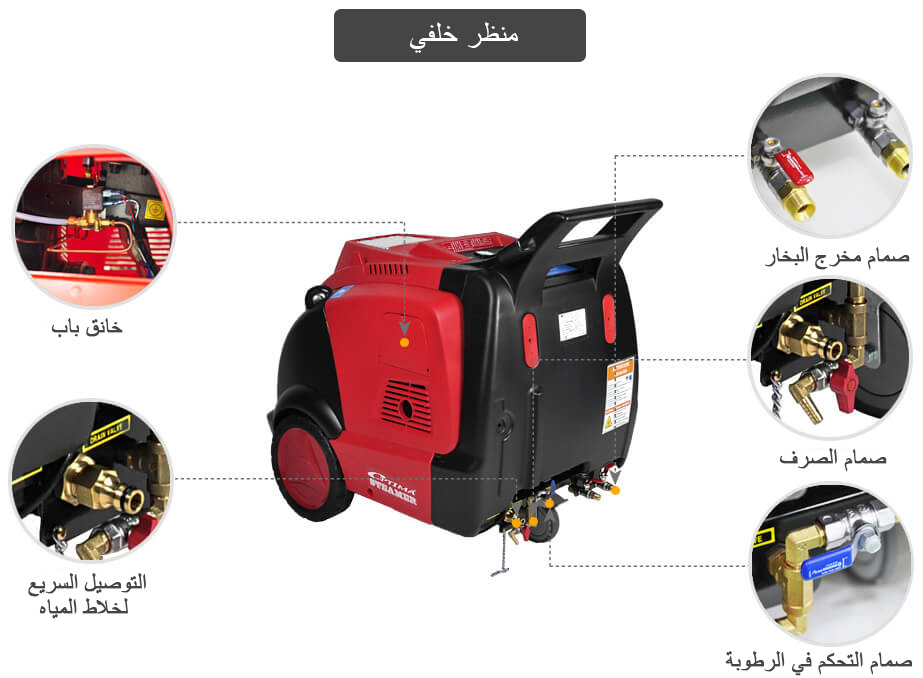

الخارجي

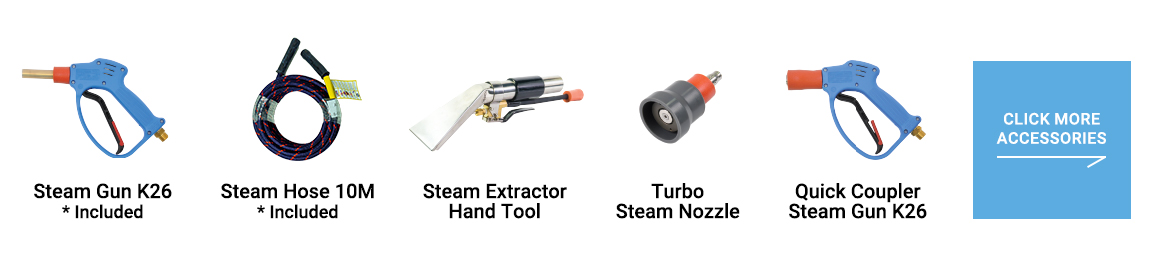

مكونات الملحقات القياسية
المواصفات | MODELS | DMF | EST 5K | EST 12K | EST 18K | EST 27K |
| Operating Voltage | 1-Phase 100V ~ 240V | 1-Phase 200V ~ 240V | 3-Phase 200V ~ 600V | 3-Phase 200V ~ 600V | 3-phase 380V ~ 600V |
| Operating Pressure | 8.5 bar | 8.5 bar | 8.5 bar | 8.5 bar | 8.5 bar |
| Max Pressure | 9.5 bar | 9.5 bar | 9.5 bar | 9.5 bar | 9.5 bar |
| Max. Temp. at Gun Tip | 135°C | 135°C | 135°C | 135°C | 135°C |
| Boiler Temp. | 178°C | 174°C | 174°C | 174°C | 174°C |
| Steam Flow Rate | 300 ~ 1,800 cc/min | 300 ~ 600 cc/min | 300 ~ 900 cc/min | 300 ~ 1,200 cc/min | 300 ~ 1,700 cc/min |
| Preheating Time | 3 ~ 4 min | 21 ~ 23 min | 10 ~ 11 min | 6 ~ 7 min | 6 ~ 7 min |
| Electrical Power | 0.3 kW | 5.2 kW | 12.2 kW | 18.2 kW | 27.2 kW |
| Fuel Consumption | 0.2 ~ 1.1 ℓ/hr | - | - | - | - |
| Water Tank Capacity | 20ℓ | 40ℓ | 40ℓ | 40ℓ | 40ℓ |
| Fuel Tank Capacity | 20ℓ | - | - | - | - |
| Net Weight | 83 kg | 74 kg | 74 kg | 75 kg | 83 kg |
| Dimensions (L x W x H) | 1,090 x 700 x 900mm | 1,090 x 700 x 900mm | 1,090 x 700 x 900mm | 1,090 x 700 x 900mm | 1,090 x 700 x 900mm |
| Hoses/Guns Included | 1 set | 1 set | 1 set | 1 set | 1 set |
